Goal of the project

In ITER and in a fusion power plant the alpha particles generated by the fusion reactions will be the main heating source to keep the plasma at high temperature. The alpha heating takes place in the plasma core. The heat generated in this way is transported via conduction and convection towards the periphery of the plasma, it crosses the plasma boundary (the so-called magnetic separatrix) and flows along the magnetic field in a narrow layer (the Scrape-Off Layer or SOL that is a few millimeter wide) down to the divertor, a smaller chamber with actively cooled plasma facing components, where it is eventually extracted.

The problem is that the SOL width is so small and the power generated by fusion reaction so large that the heat flux can achieve values of 60MW/m2, of the same order as the heat flux at the surface of the Sun. At the moment, the divertor components can withstand fluxes on 10MW/m2 in stationary conditions and up to 20MW/m2 for limited amount of time.

The goal of DTT is to demonstrate innovative solutions for the divertor based either on advanced magnetic configurations or new materials such as liquid metals. Advanced magnetic configurations can spread the heat on a larger surface, so decreasing the local heat flux and help in achieving detached divertor conditions. Liquid metals are not prone to the problems associated with localized melting when solid materials are used.

For these reasons DTT has been designed in a flexible way to accommodate different configurations as shown in the figure below.

Fusion facilities around the world

In 2012, the European fusion community identified eight missions on the path towards fusion electricity, listed in the EUROfusion European Research Roadmap to the Realisation of Fusion Energy (www.euro-fusion.org/eurofusion/roadmap):

  1. Plasma regime of operation
  2. Heat-exhaust system
  3. Neutron resistant materials
  4. Tritium self-sufficiency
  5. Implementation of intrinsic safety features of fusion
  6. Integrated DEMO design and system development
  7. Competitive cost of electricity
  8. Alternative to Tokamak configurations (Stellarator).
European Research Roadmap to the Realisation of Fusion Energy, 2018, ISBN 978-3-00-061152-0
European Research Roadmap to the Realisation of Fusion Energy, 2018, ISBN 978-3-00-061152-0

As a matter of fact, DTT is a key facility in the framework of mission n. 2 ("Heat-exhaust system"), that is to provide an integrated fusion environment where to test advanced divertor solutions required for the first nuclear fusion power plant.

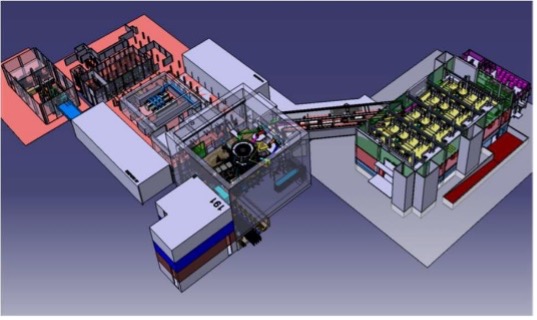

Rendering of DTT
Rendering of DTT
